ISO 4029
identical with DIN 916

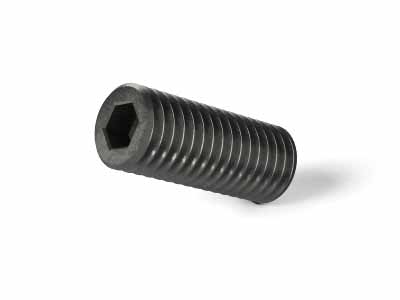

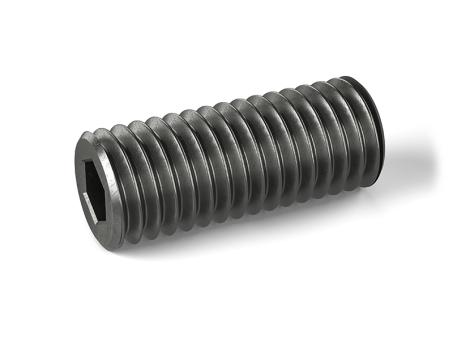

Set screws

hexagon socket | with ring cutting
Flange/washer: without flange | Thread type: Metric thread | Force application: Hexagon socket | Material: Steel 45 H | Installation method: Screw into place with tool | Surface: bright | Product group: Screws
Set screws
Diameter (d)
M2
M3
M4
M5
M6
M8
M10
M12
M16
M20
Length (l)
3
4
5
6
8
10
12
16
20
25
30
35
40
45
50
55
60
Packaging unit (pcs.)
50
100
200
500
1000
For further information please contact us.
identical with DIN 916 | DIN standard has been withdrawn
ISO 4029 | steel | 45 H | bright | Cr(VI)-free | metric thread

Note: Identical with DIN 916 | DIN-standard has been withdrawn

Threaded pins are not intended for use under tensile load
Material version:
45 H
Cr(VI) Note:
Cr(VI)-free
Flange/washer:
without flange
Risk hydrogen embrittlement:
Thread type:
Metric thread
Force application:
Hexagon socket
Material:
Steel 45 H
Installation method:
Screw into place with tool
Surface:
bright
Product type:
Set screws/Stud bolts
Product group:
Screws
RoHS conformal:
Material:
Steel
